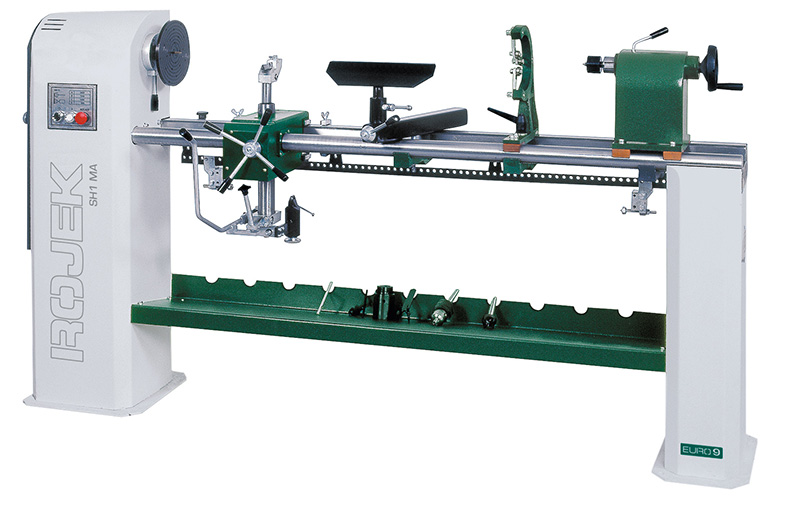

WOOD TURNING LATHE -SH1 MA

A professional machine designed for single-part and small sized production.

TECHNICAL DATA

Woodturning copy lathe
Motor power	1,1 kW
Spindle speeds	500; 1 000; 1 950; 2 800 /min.
Max. copy diameter	420 mm
Max. copy diameter při kopírování	120 mm
Max. turning length	1 200 mm
Max. turning length při kopírování	1 100 mm
Spindle thread	M33 x 3,5 mm
Tailstock cone	MK 2
Machine dimensions
Length	1 900 mm
Width	480 mm
Height	1 150 mm
Gross weight	215 kg
Nett weight	205 kg
Other parameters
Voltage / frequency	3x400V (3x230V \| 1x230V) / 50(60)Hz
Line safeguarding	16 A
Noise level without technology LAeq	85,0 dB(A)
Noise level with technology LpAeq	87,0 dB(A)
