Manual Machines -RFT 630

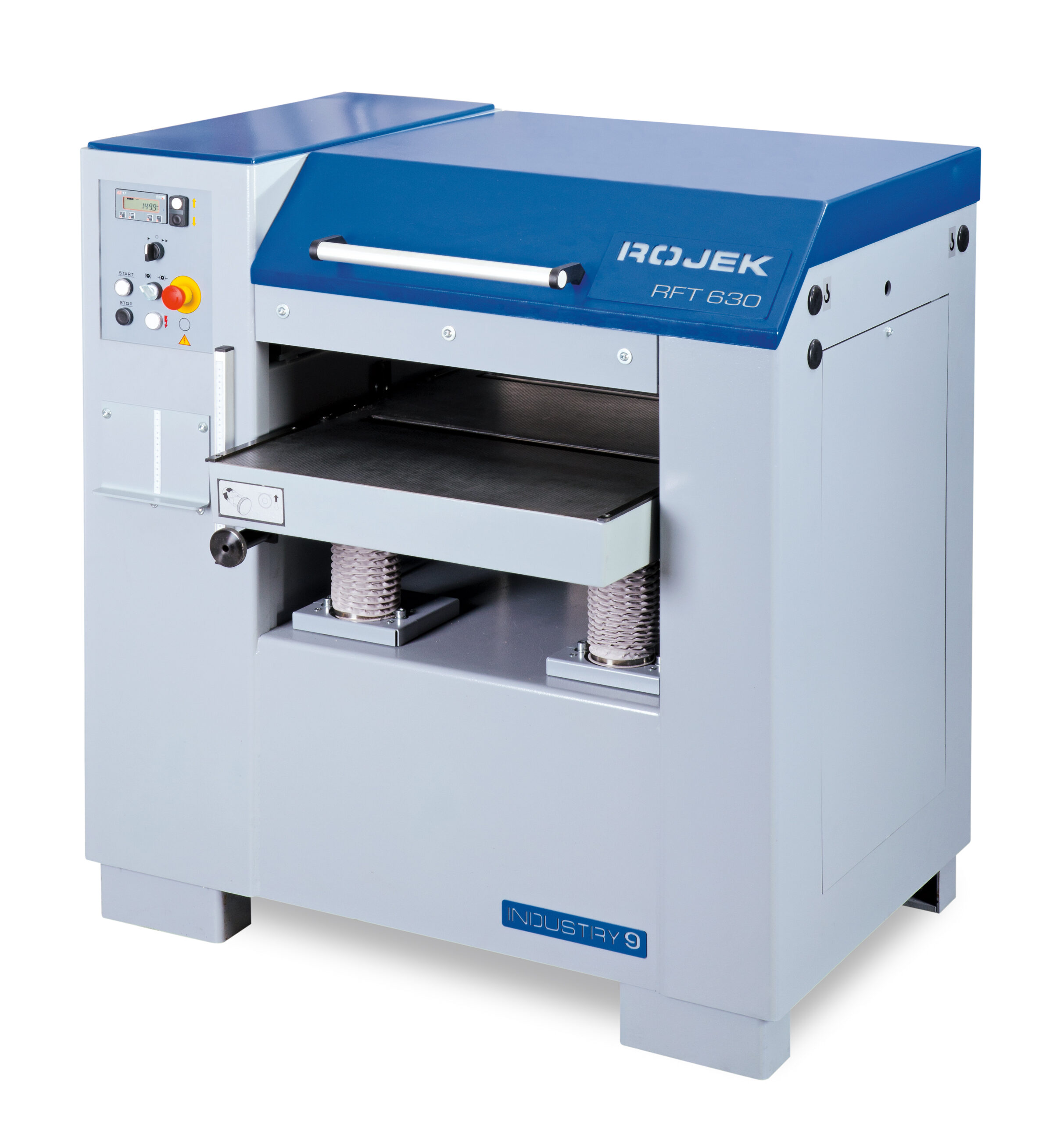

THICKNESSER -RFT 630

Previous
Next

Long cast iron tables and a four-knife cutterblock guarantee the quality of material processing.



The machine is equipped with a suction dust hood, cast iron fence with a special tilting mechanism.



TECHNICAL DATA

Thicknesser
Diameter of cutterblock120 mm
Number of cutters4
Speed of cutterblock5 500/min.
Max. thicknessing width630 mm
Max. thicknessing height300 mm
Max. stock removal thicknessing8 mm
Feeding speed5 ÷ 20 m/min.
Motor power S6 40%7,5 kW (9,2 kW)
Feeding motor power0,55 kW
Motor power zvedání0,25 kW
Machine dimensions
Length1 200 mm
Width1 170 mm
Height1 290 mm
Table size – Thicknesser1 050 x 630 mm
Gross weight890 kg
Nett weight870 kg
Other parameters
Voltage / frequency3x400V / 50(60)Hz
Noise level (without technology)88,3 dB(A)
Noise level (with technology)95,6 dB(A)
  • 12 MONTHS
  • The basic version of the machine includes a continuous feed with a programmer, which allows to work in the range of 5-20 m / min.
  • There is a more powerful motor with power 7,5 kW S6/40% in basic version.
  • The RFT 630 thicknesser is very easy to operate.Thicknessing machines ROJEK use standart flat knives. The knives can be easily changed and set up. It´s possible to purchase them in almost every specialised tool shop.
  • This machine is part of INDUSTRY 9 series it is suitable for medium and heavy woodworking industry.
  • Three- phase motor power Motor 9,2 kW/S6
  • TERSA cutterblock
  • Spiral cutterblock
  • Segmented infeed roler
  • Ruberred infeed /outfeed roller
  • Knife setting gauge
